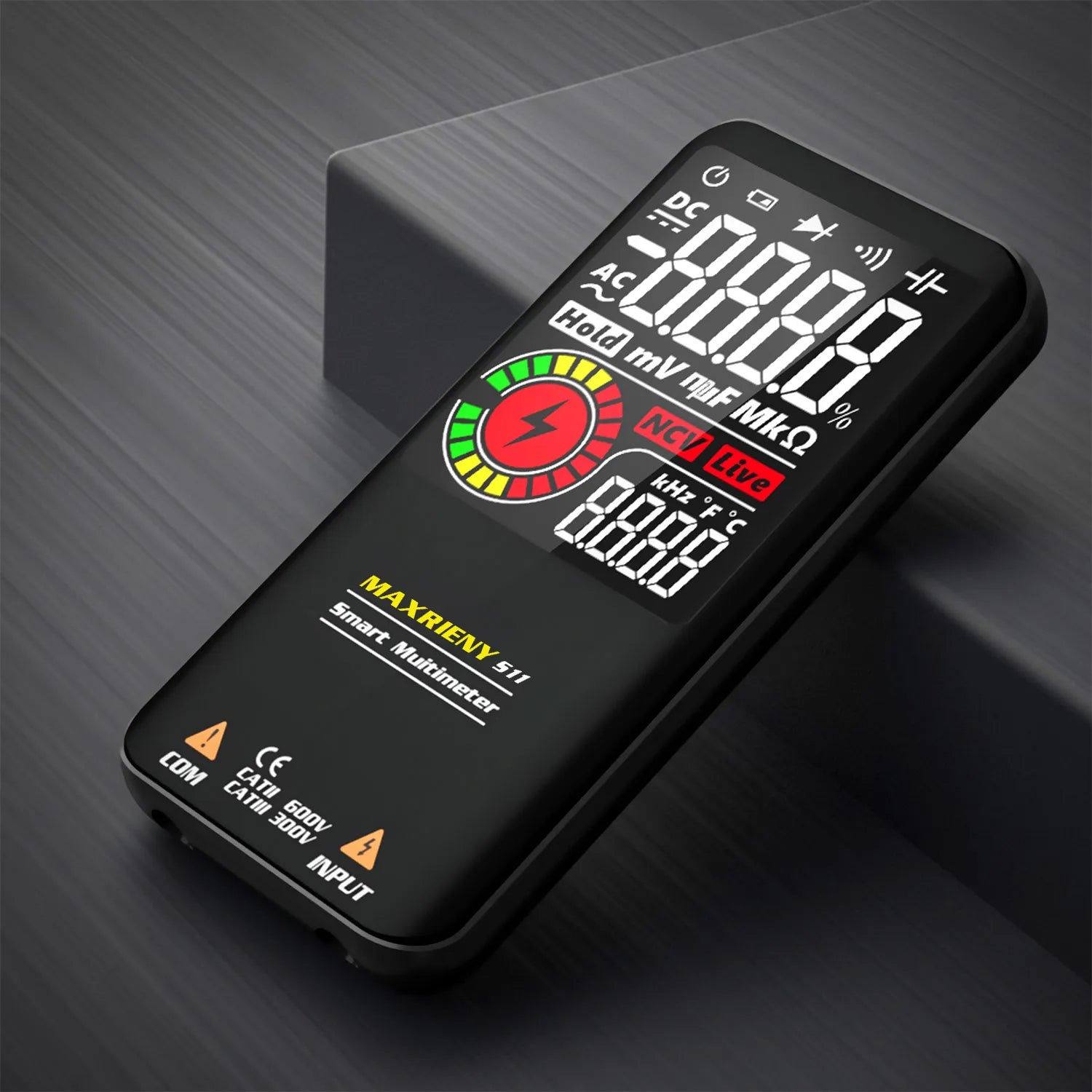

Smart Digital Multimeter USB Rechargeable True RMS EBTN DC AC Voltage Capacitance Ohm Diode NCV Hz Live Wire Tester

$54.99 USD

~~$0.00 USD~~ $54.99 USD

Sale Sold out

Shipping calculated at checkout.

Color S10 A10 S11 S20

Ships From spain United States

Quantity

SPECIFICATIONS

AC Current: N/A

AC Voltage: 620V

Certification: CE, FCC, RoHS

DC Current: N/A

DC Voltage: 620V

DIY Supplies: Electrical

Dimensions: 147*85*4.2mm

Display Type: Digital Display

Is Smart Device: No

Model: S10

Measuring Capacitance Range: 99.99mF

Measuring Inductance Range: N/A

Measuring Resistance Range: 60MOhm

Model Number: Digital Multimeter

Operating Mode: Automatic/Manual

Operating Temperature: 0 - 40 ℃

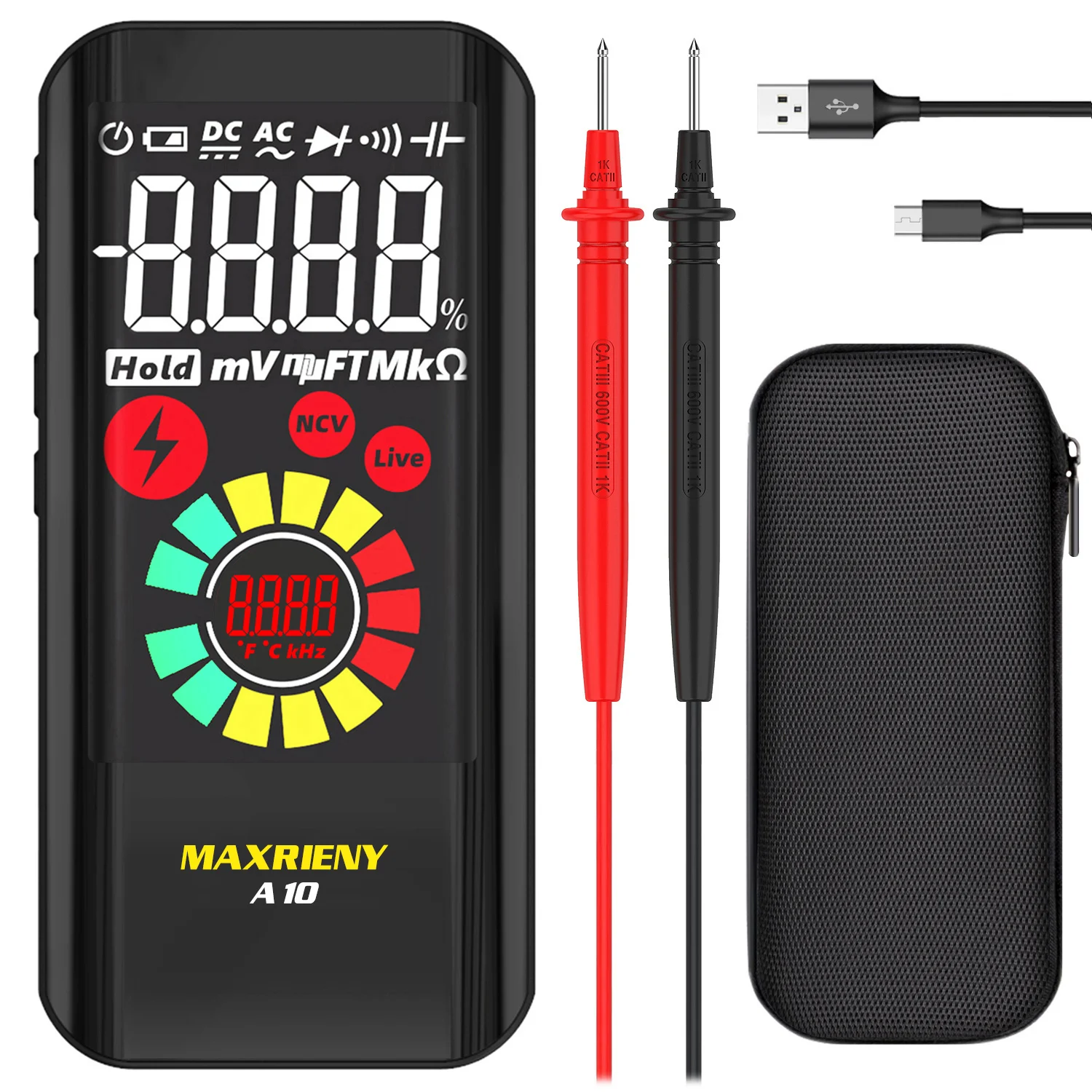

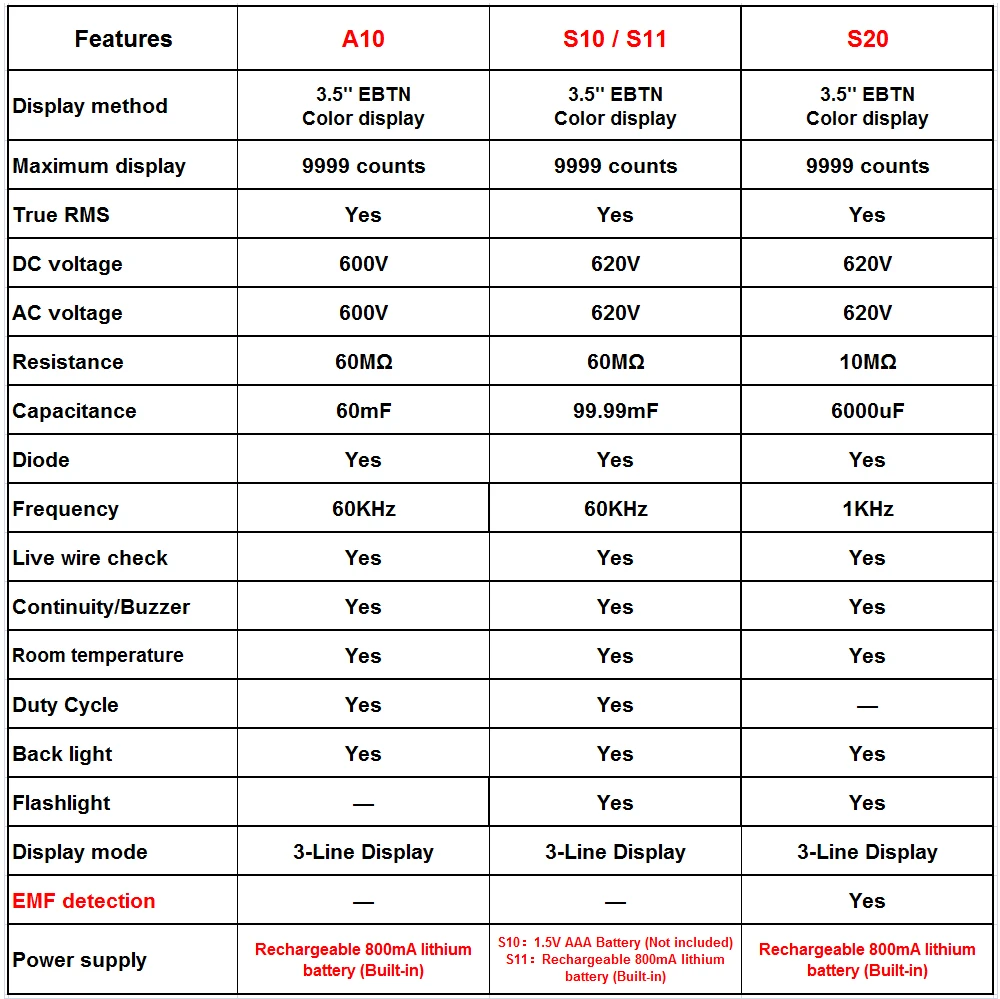

The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.

The test parameters of S10/S11 are the same; the difference is: S10 uses a 1.5V AAA battery power supply, S11 built-in 800mA rechargeable lithium battery.

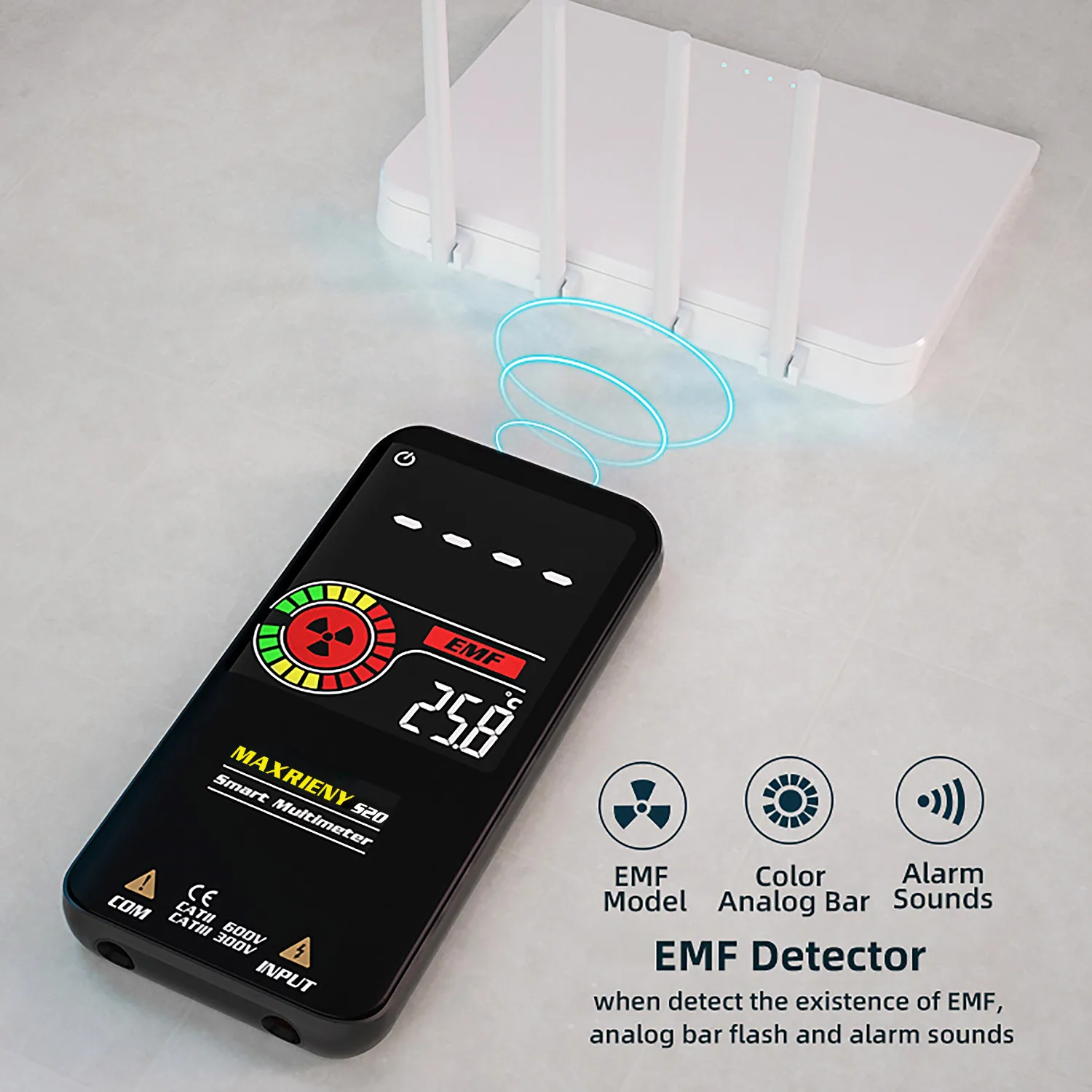

The S20 product is the highest version of the series, adding an EMF detection function.

Specifications:

Display: 9999 counts.

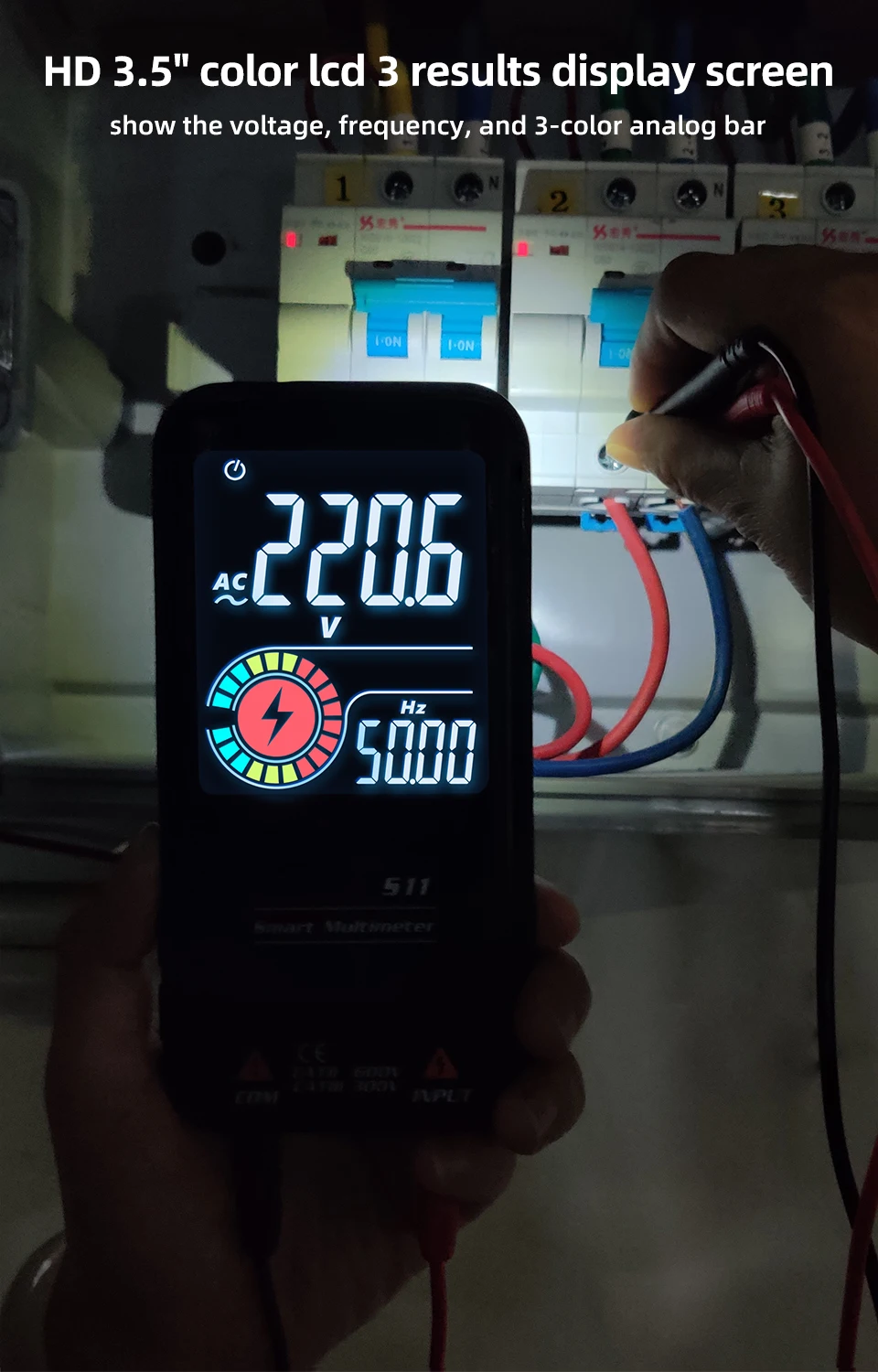

Screen: 3.5 inch.

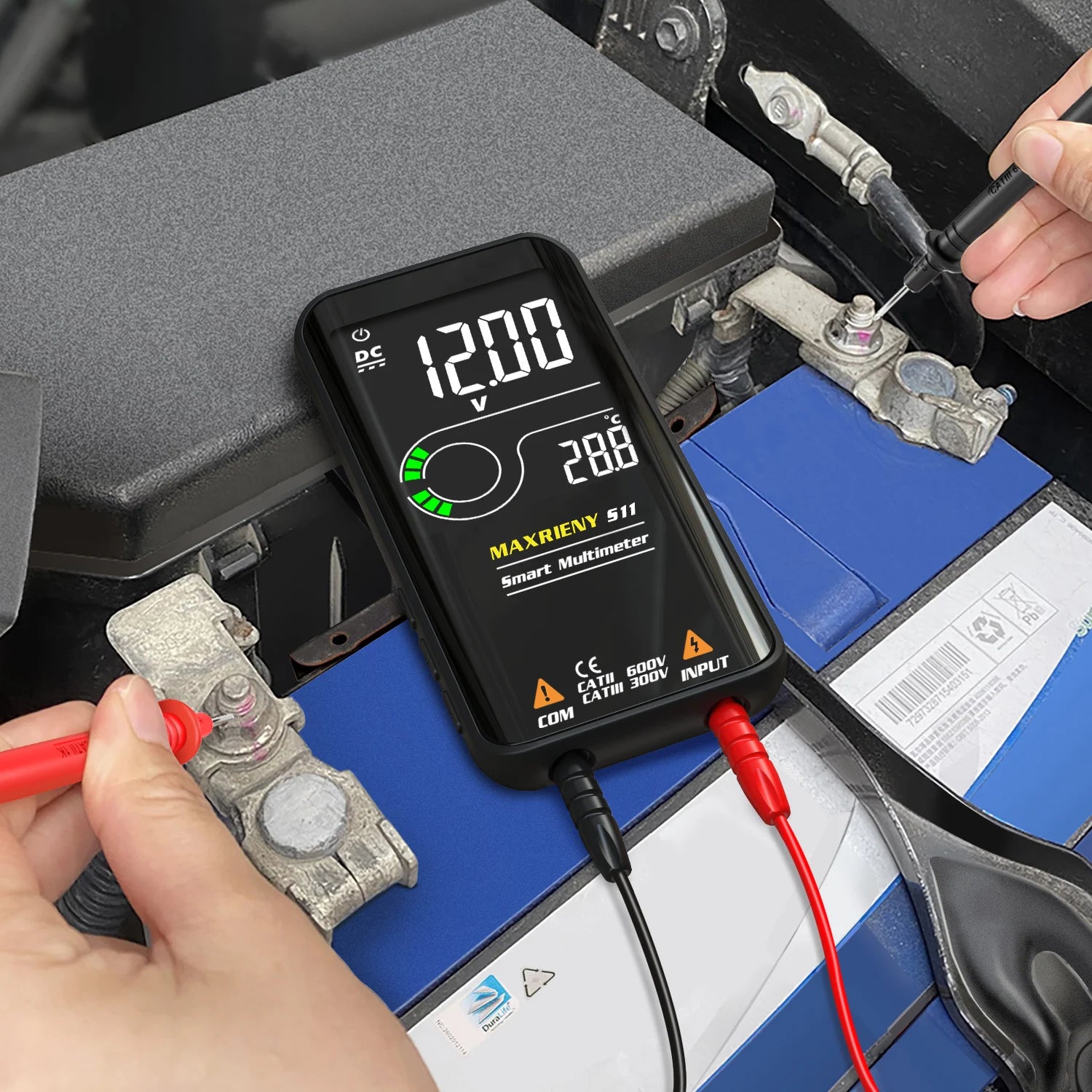

DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

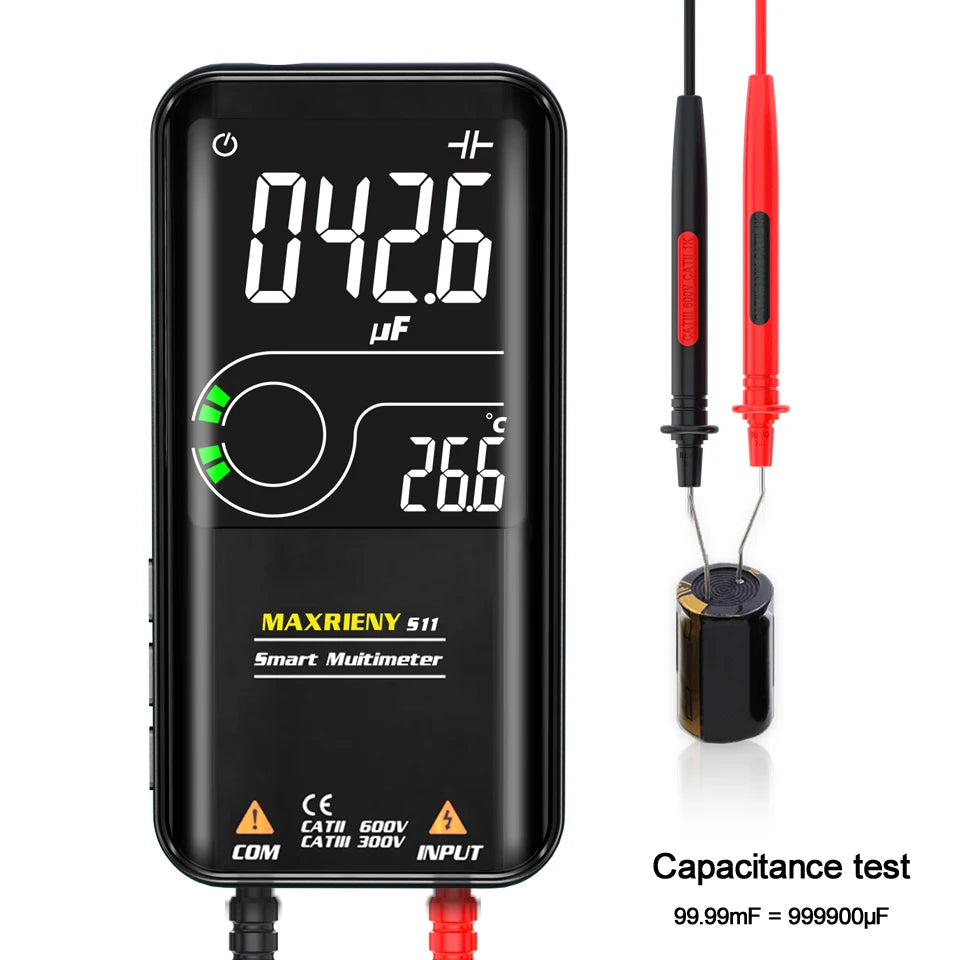

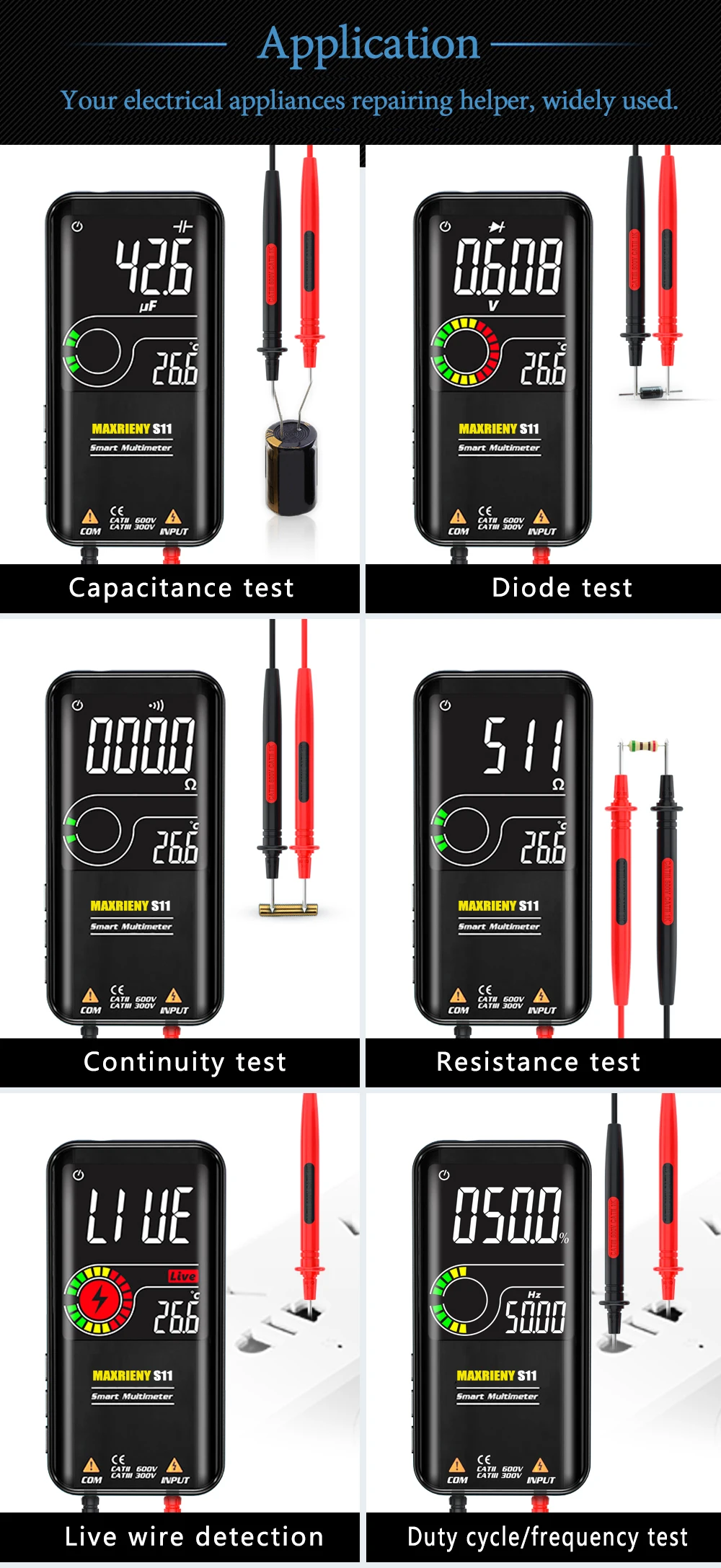

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF`99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz. 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.

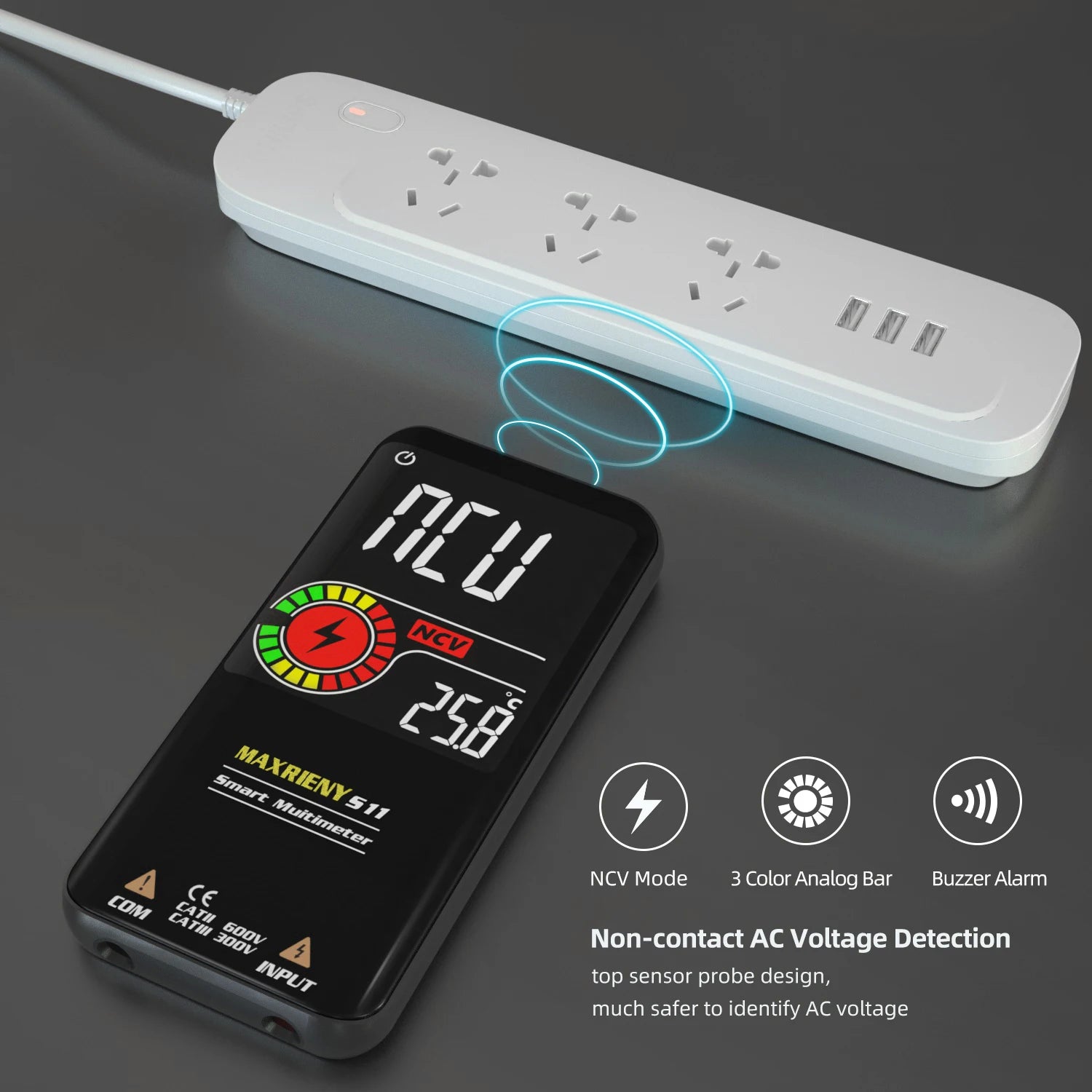

V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.
S10 Power: 1.5V (AAA) x 2.

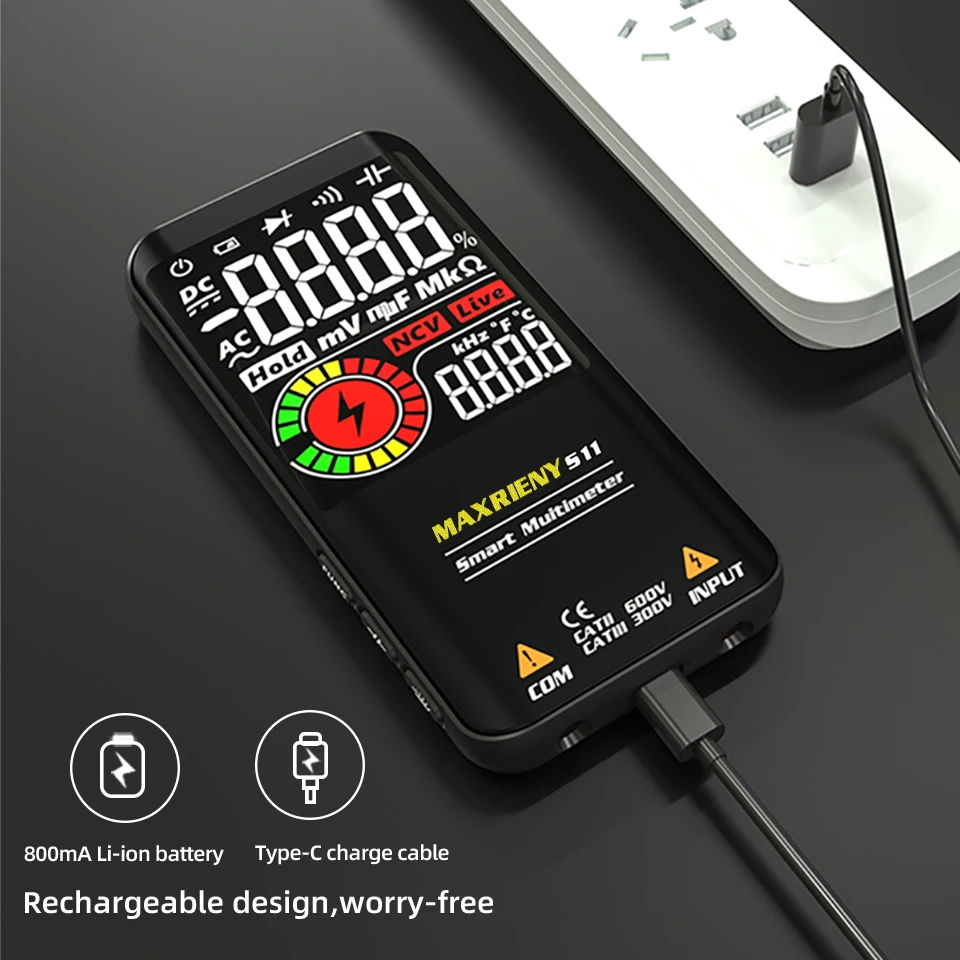

S11 Power: Built-in rechargeable lithium battery.
Package Size: 147*85*42mm.
Package Weight: 180g
