SPECIFICATIONS



AC Current: 610mA

AC Voltage: 620V

Certification: CE, FCC, RoHS

DC Current: 610mA

DC Voltage: 620V

DIY Supplies: Electrical

Dimensions: 161*78*21mm

Display Type: Digital Display

Is Smart Device: No

Model: s30

Measuring Capacitance Range: 10mF

Measuring Inductance Range: N/A

Measuring Resistance Range: 10MΩ

Model Number: Smart Digital Multimeter

Operating Mode: Manual/automatic

Operating Temperature: 0 - 50 ℃

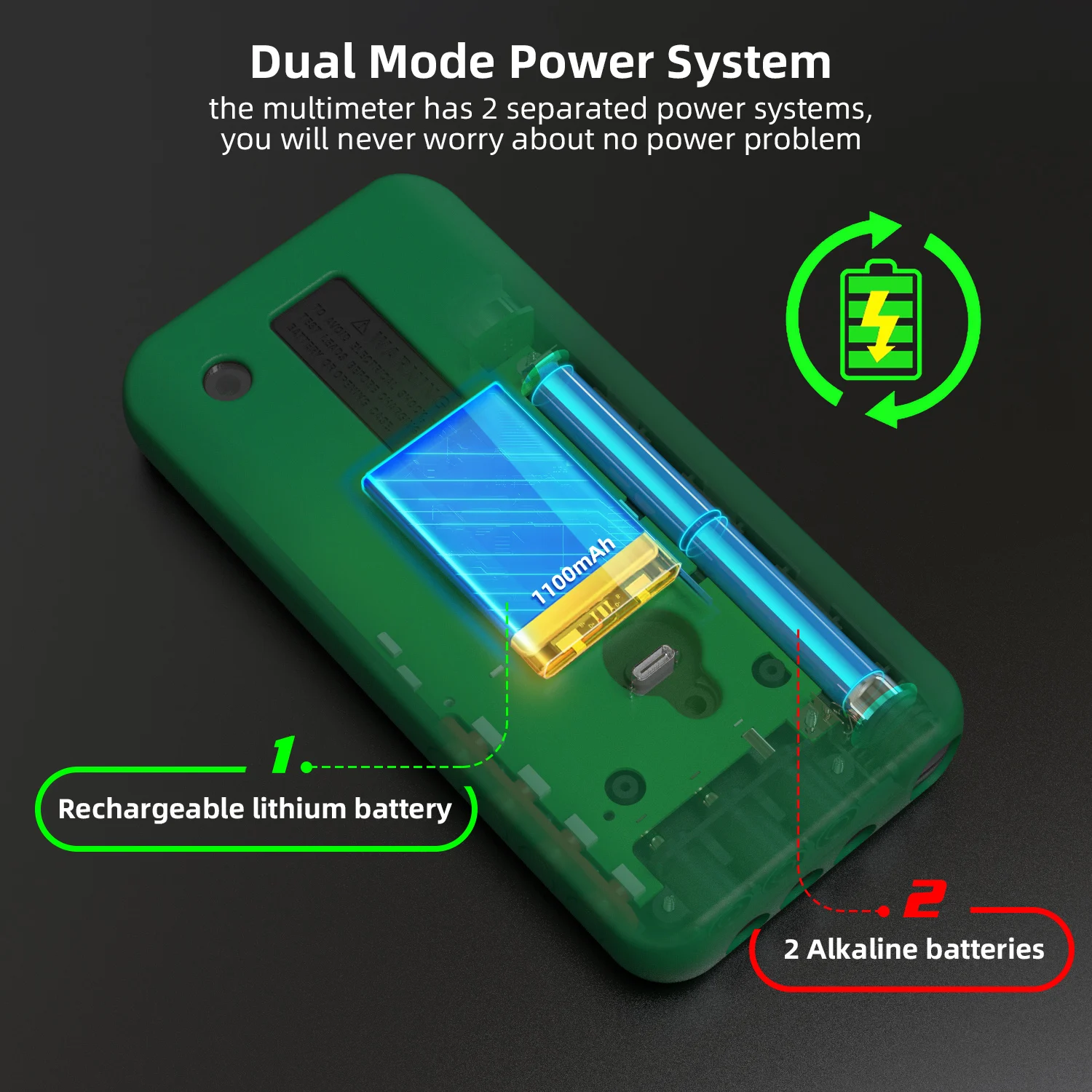

The S30 product is the highest version of the series. Equipped with dual dual-mode power supply of a 1100mA lithium battery and 1.5V (AAA) * 2 carbonate battery. Infrared temperature measurement can light up 15V diode detection function (Lithium batteries are prioritized for power supply).

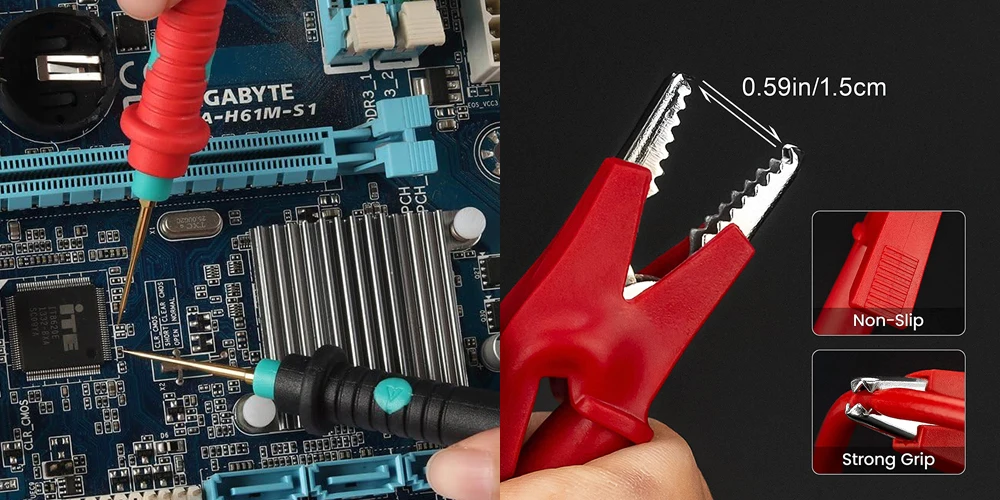

S30 Product+T9004 Ultra-Sharp Silicone Tester Probe + T1101 High-Quality Alligator Clip Test Leads.

Specifications:

Display: 9999 counts

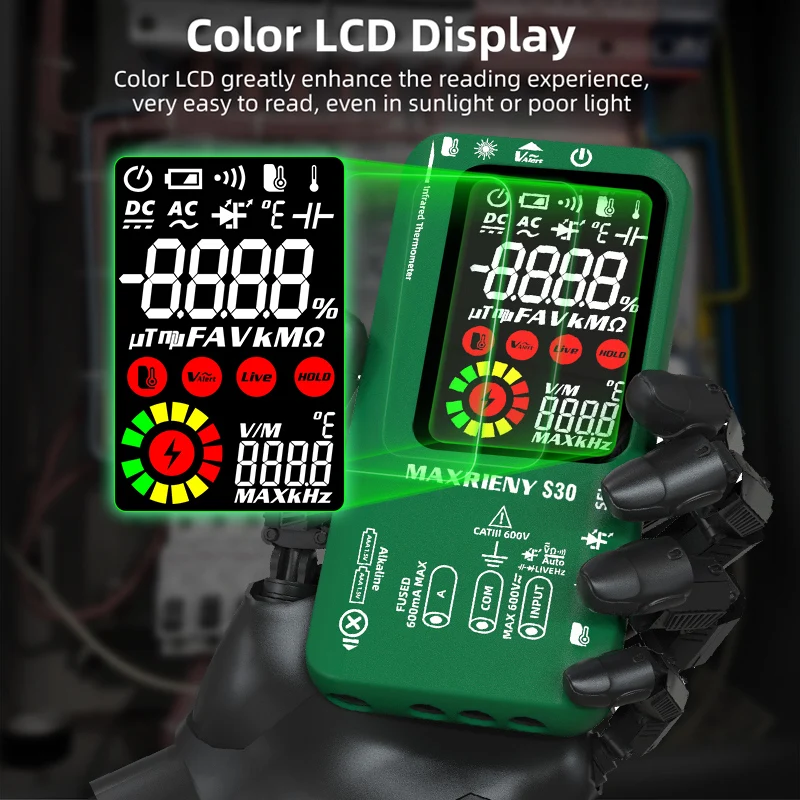

Screen: 3.8 inch

DC Voltage: 0-620V.

Resolution: 0.001V. Accuracy(±0.8%+3).

AUTO MODE. 0.5-620V.

Resolution: 0.001V. Accuracy(±0.8%+3).

AC Voltage: 0-620V.

Resolution: 0.001V. Accuracy(±1.2%+5). AUTO AUTO MODE.0.8-620V.

Resolution: 0.001V. Accuracy(±1.2%+5).

DC Current: 1-610mA.

Resolution : 0.1mA .Accuracy(±1.5%+3).

AC Current: 1-610mA 40-200HZ Resolution : 0.1mA .Accuracy(±2.0%+3).

Resistance:0Ω-10MΩ Resolution : 0.1Ω Accuracy(±1.2%+3).

Capacitance:0.5uF-1000 uF Resolution : 0.1 uF Accuracy(±3.5%+8).1000 uF-10mF Resolution : 0.1 uF Accuracy(±4.5%+10).

Frequency:10Hz-99.9Hz Resolution : 0.1Hz Accuracy(±1.0%+5). 100Hz-1000Hz Resolution : 1Hz Accuracy(±1.0%+5).

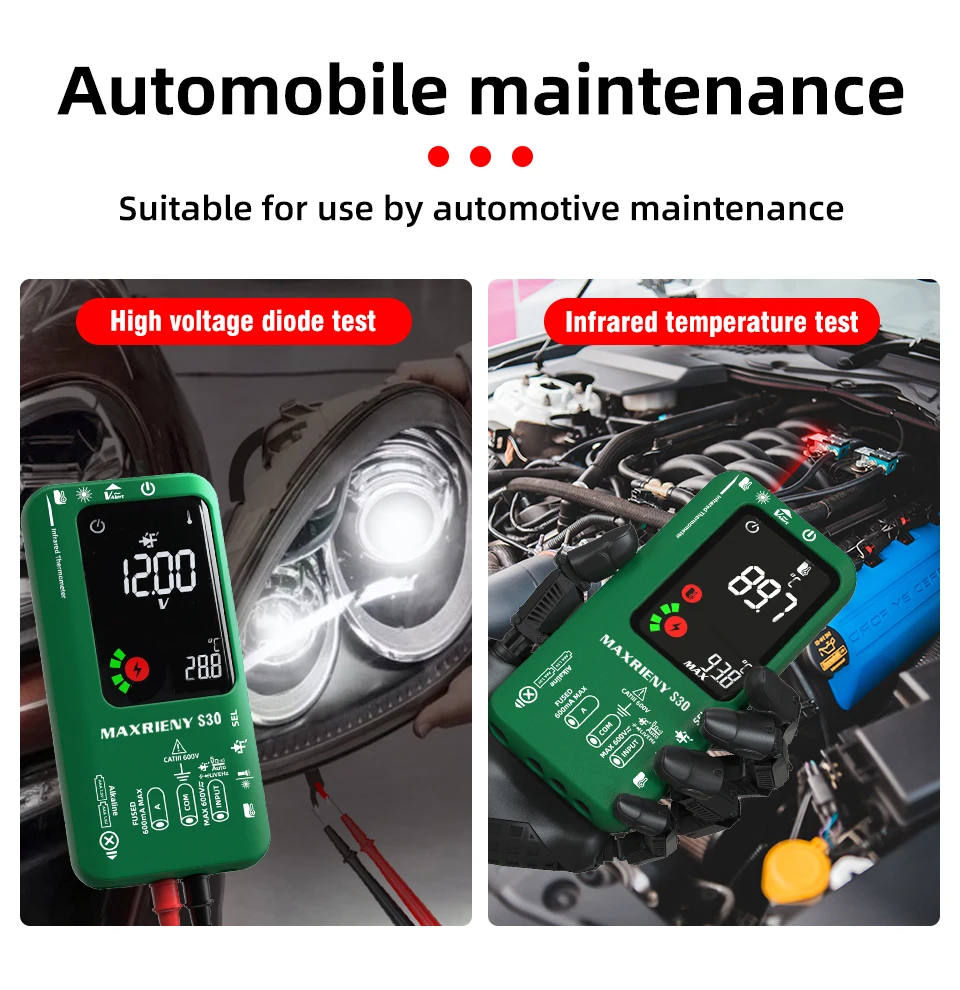

Infrared temperature measurement:-20°C/0°C（-4°F/32°F）CResolution : 0.1°C (F) Accuracy(±3.0%+2°C(F)). 0 °C /400°C（32°F/752°F）°CResolution : 0.1°C (F) Accuracy(±2.5%+3°C(F)).

Object distance ratio：4:1

Low-voltage diode： Measure Diodes Within 2.0V

High voltage diode： Open Circuit Voltage 15V, Test Current 1mA

Continuity: If the resistance is less than 30Ω, the continuity beeper sounds

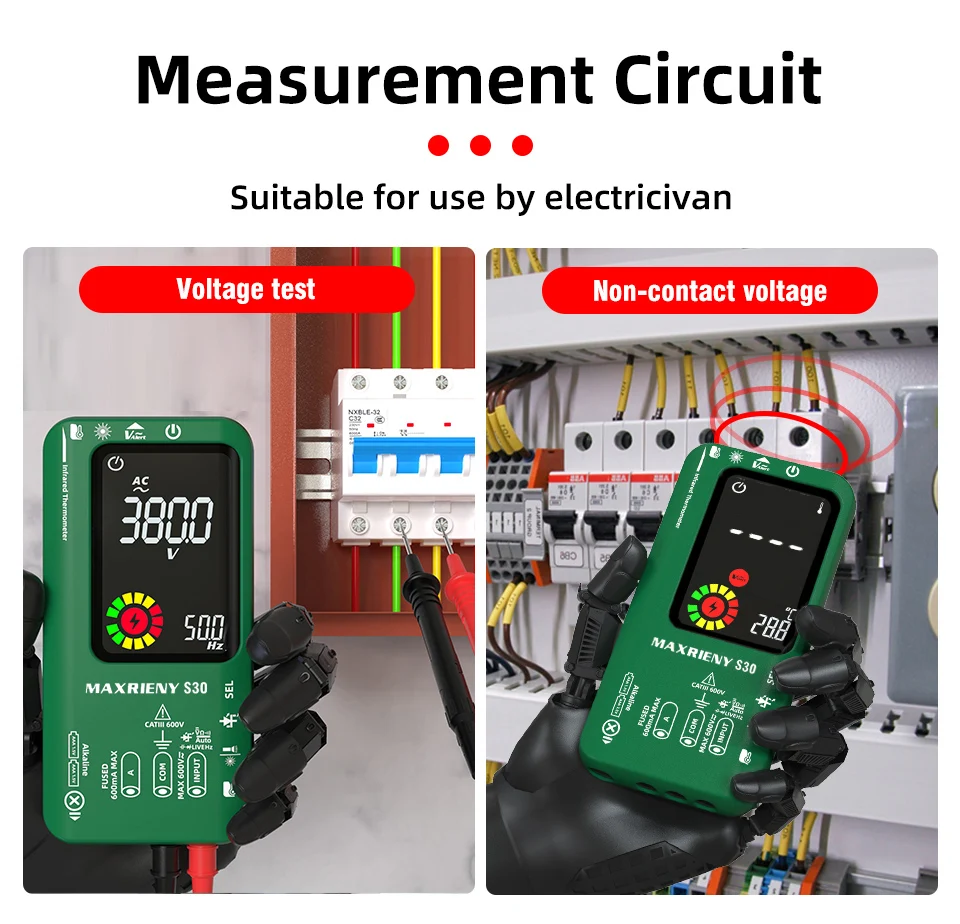

V-Alert (non-contact voltage detection): Yes

Live wire check: Yes

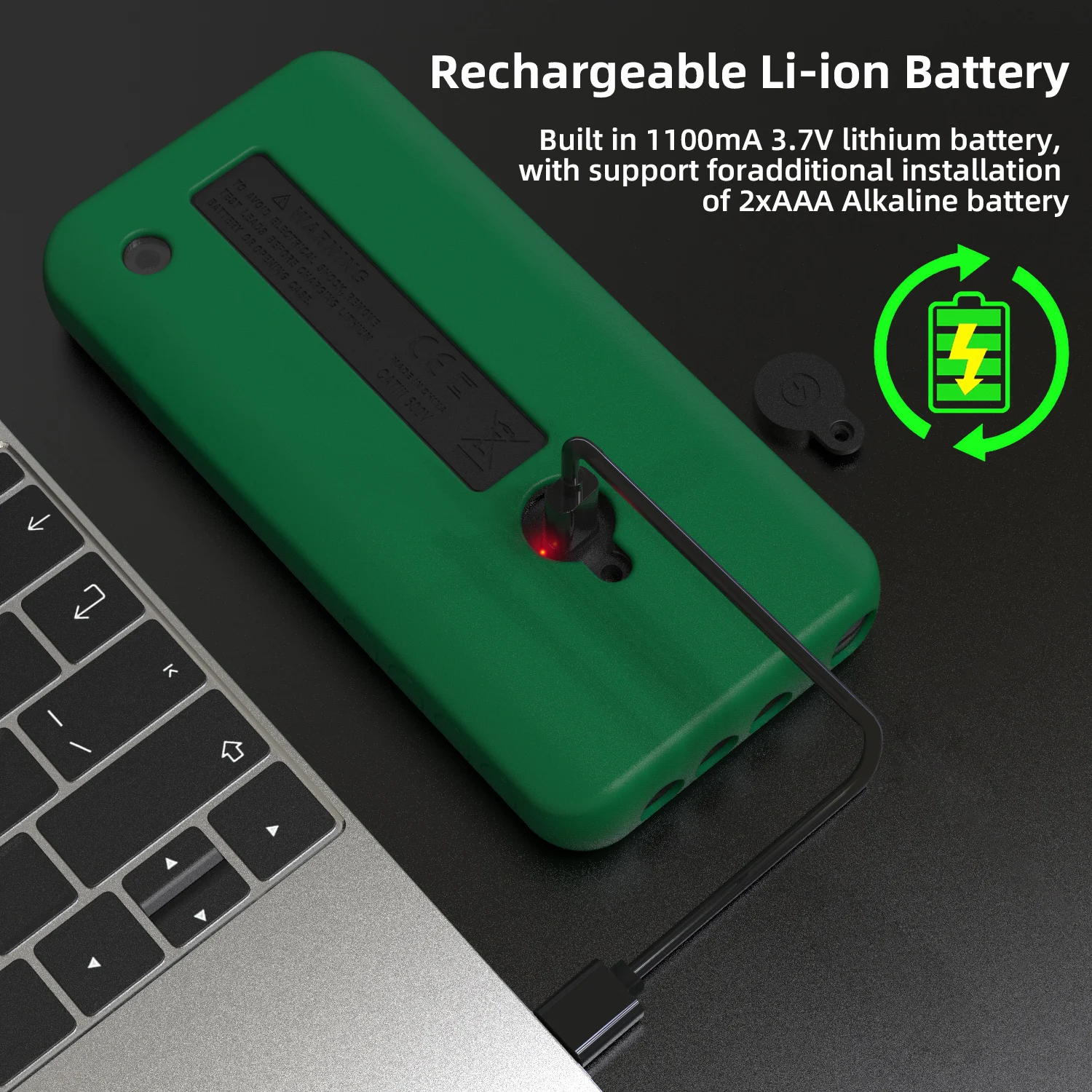

Power: 1100mA Lithium battery+1.5 V (AAA) x 2 Dual mode
Size: 161 x 78 x 21 mm

Weight:245g



Package Includes:

1 x Multimeter.
1 x Test Leads.
1 x Screwdriver.
1 x User Manual.
1 x EVA Bag
