SPECIFICATIONS



AC Voltage: 200-400V

Battery Included: Yes

Capacitor Tester: Voltage Indicator

DC Current: 2000u-20m-200mA

DC Voltage: 200-400V

DIY Supplies: Electrical

Digital Multimeter: Multimeter

Dimensions: 102x60x24mm

Display Type: Digital Display

Is Smart Device: No

Measuring Resistance Range: 200-2000-20k-200k-2000k

Model Number: Multimeters

Multimeter Tools: Voltmeter Tester

Operating Mode: Manual Range

Smart Multimeter: Capacitance Meter











Portable Digital Multimeter 1999 Counts Mini Pocket Ammeter Voltmeter Current Voltage Ohm Meter Battery Capacity Test

Specifications:

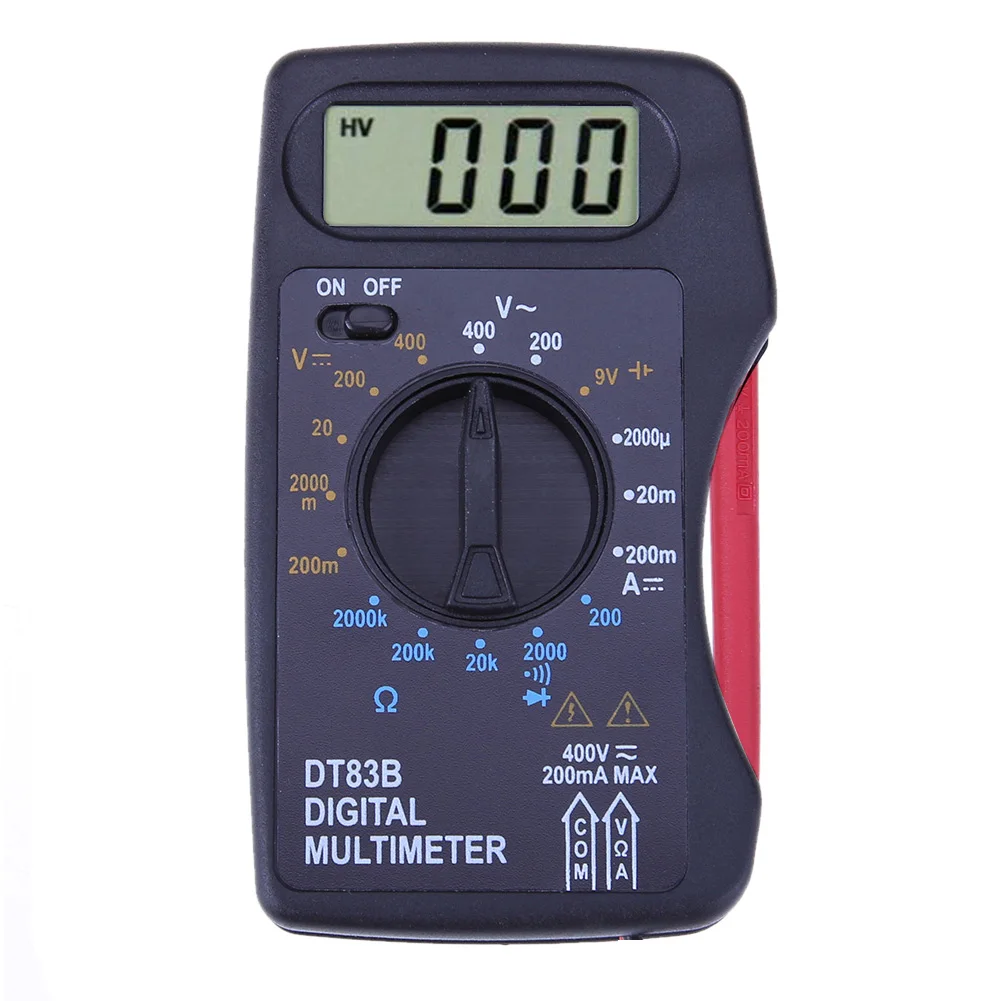

Name: Multimeter DT83B

Security level: CAT I

Certification and standard: CE

Product technical features:

DC voltage: 200m-2000m-20-200-400V ±0.5%

AC voltage: 200-400V ±1.0%

DC: 2000u-20m-200mA ±1.8%

Resistance: 200-2000-20k-200k-2000kΩ ±1.0%

Product General Features:

LCD size: 35x14mm

LCD maximum display value: 1999

Low voltage symbol: yes

Overload protection: yes

Diode Test: Yes, show approximate voltage drop

On-off detection and buzzer function: Yes

Battery capacity test: 9V

Power supply: 12V 23A battery (not included)

Product Size: 102x60x24mm/4.01x2.36x0.94in

Product advantages: Mini ultra-thin, integrated design, compact and beautiful, easy to carry





1 x Multimeter DT83B

1 x User Manual
