SPECIFICATIONS



AC Current: 610mA

AC Voltage: 620V

Battery Included: Yes

Certification: CE, FCC, RoHS

DC Current: 610mA

DC Voltage: 620V

DIY Supplies: Electrical

Dimensions: 146*44*25.2mm

Display Type: Digital Display

Is Smart Device: No

Measuring Capacitance Range: 6.000mF

Measuring Inductance Range: N/A

Measuring Resistance Range: 4000Ω

Model Number: Smart Digital Multimeter

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃





Rechargeable Digital Multimeter Tester Smart Electrical Ammeter VFC Capacitance Current Continuity Frequency V-Alert Voltage Tester with Flashlight

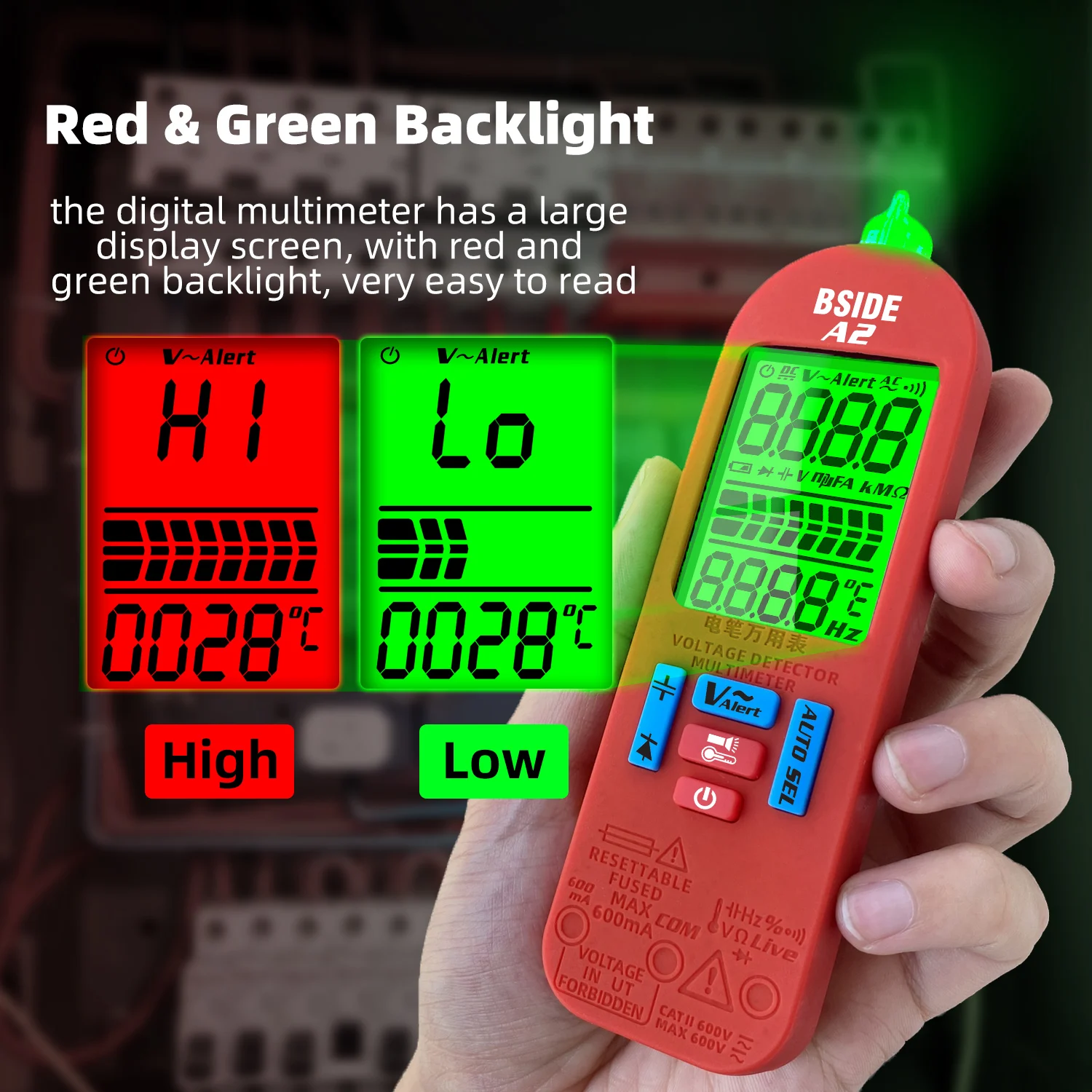

[Red and Green Backlight]: The smart digital multimeter has high resolution display screen with red and green backlight, greatly enhancing the reading experience.

[Smart Mode]: This pocket digital multimeter can automatically measure voltage, resistance, and continuity with the best resolution.

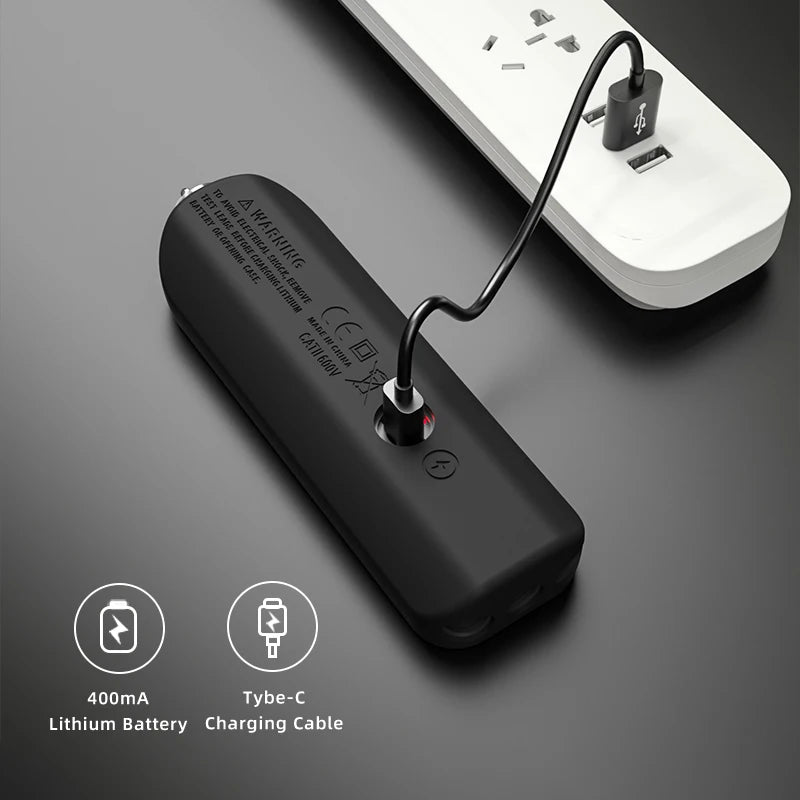

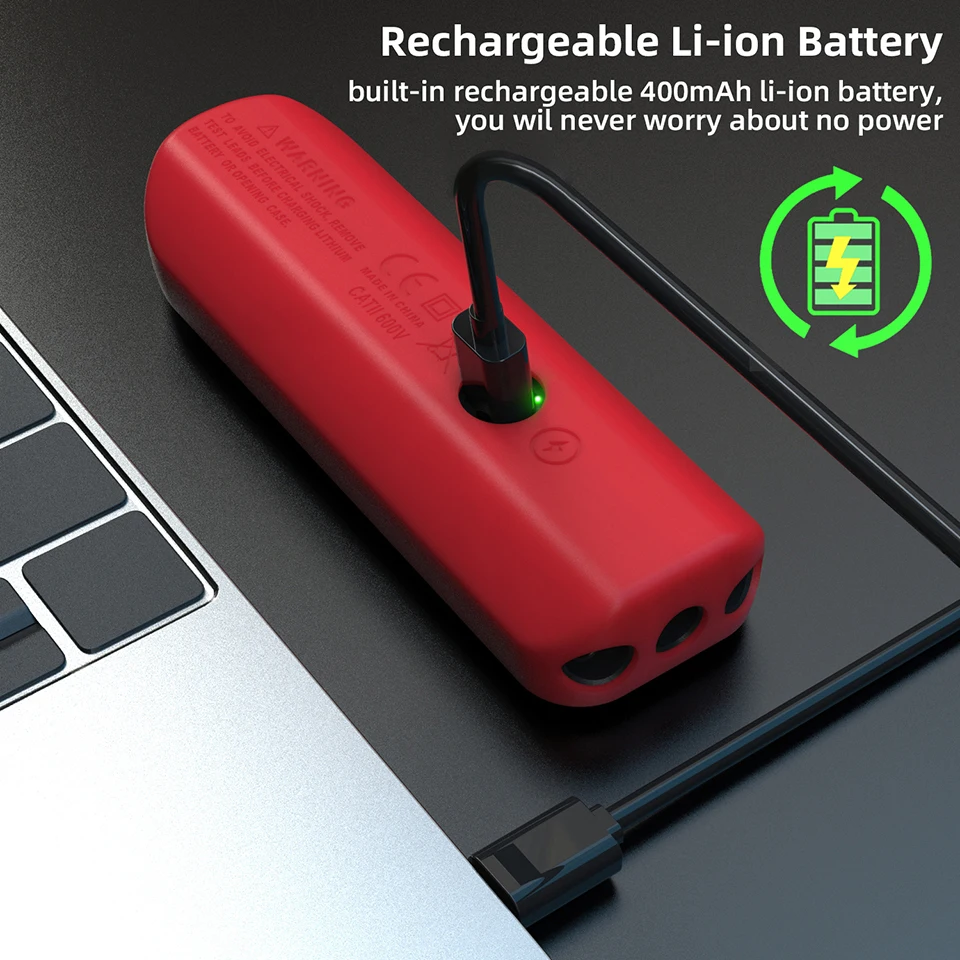

[Rechargeable]: The electrical voltage tester comes with a rechargeable battery. It can accurately measure capacitance, diode, VFC, current, AC/DC voltage, resistance, continuity, v-alert, and live wire. With this small auto range multimeter, you can solve vehicle, household, and electronic problems.

[No-contact Voltage Detector]: The rechargeable digital voltmeter can also be used as a professional non-contact voltage tester. The sensitivity of the AC volt tester is adjustable.

[Protective Case]: The AC DC multimeter tester comes with a durable protective case for protection against shocks, friction, and bumps. This case is detachable and easy to replace.

Features:

General-purpose rechargeable multimeter tester

Smart digital voltmeter with a large screen

Super large reading number for easy use

Electrical voltage tester with smart mode for easy use

Green and red backlight digital pocket ammeter

Multi tester with measuring environmental temperature

Measures capacitance, diode, AC/DC, AC/DC voltage, VFC, resistance, frequency, continuity, v-alert, live wire check

Also can be used as a professional voltage detector with adjustable sensitivity

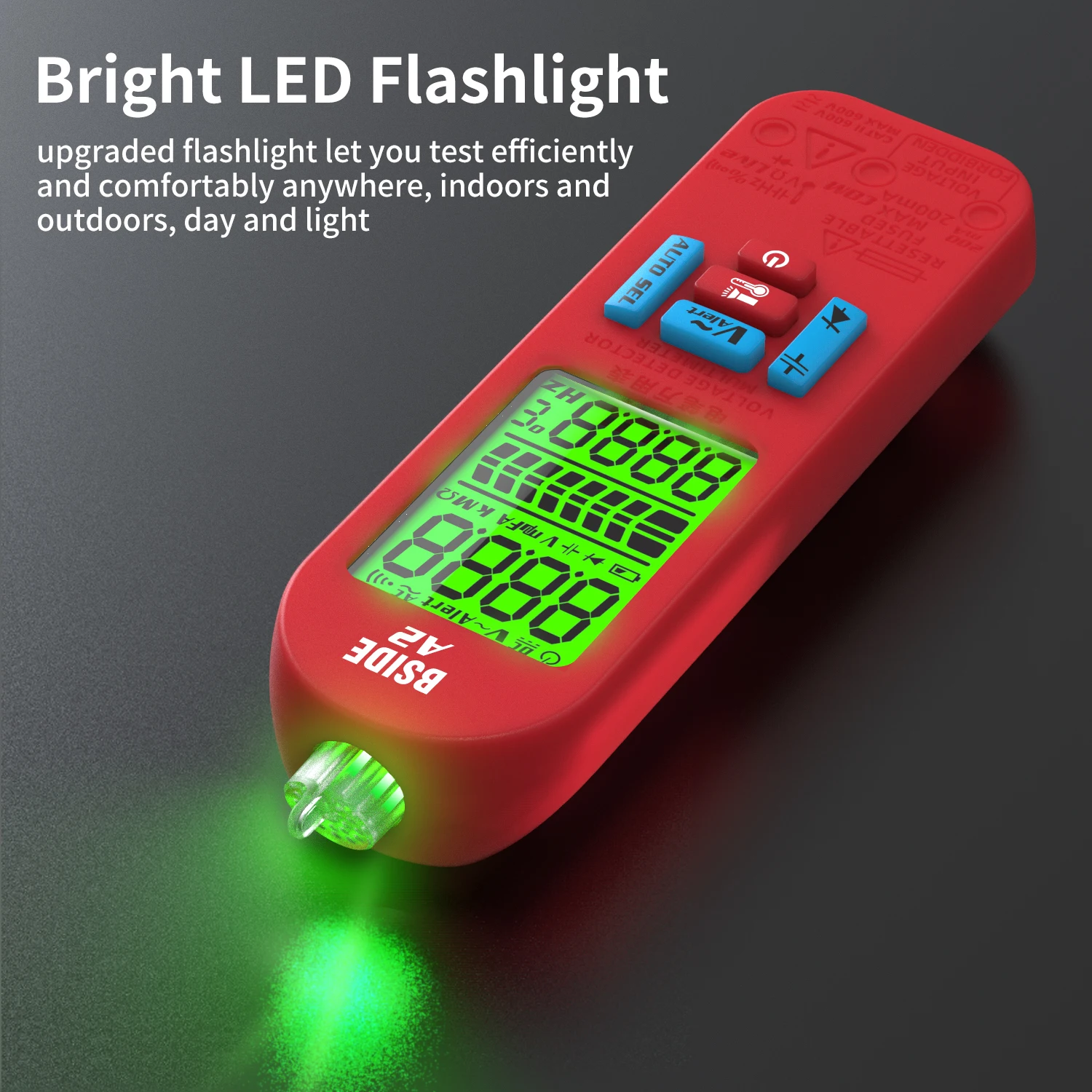

Auto range, Auto power off, low battery indication with flashlight

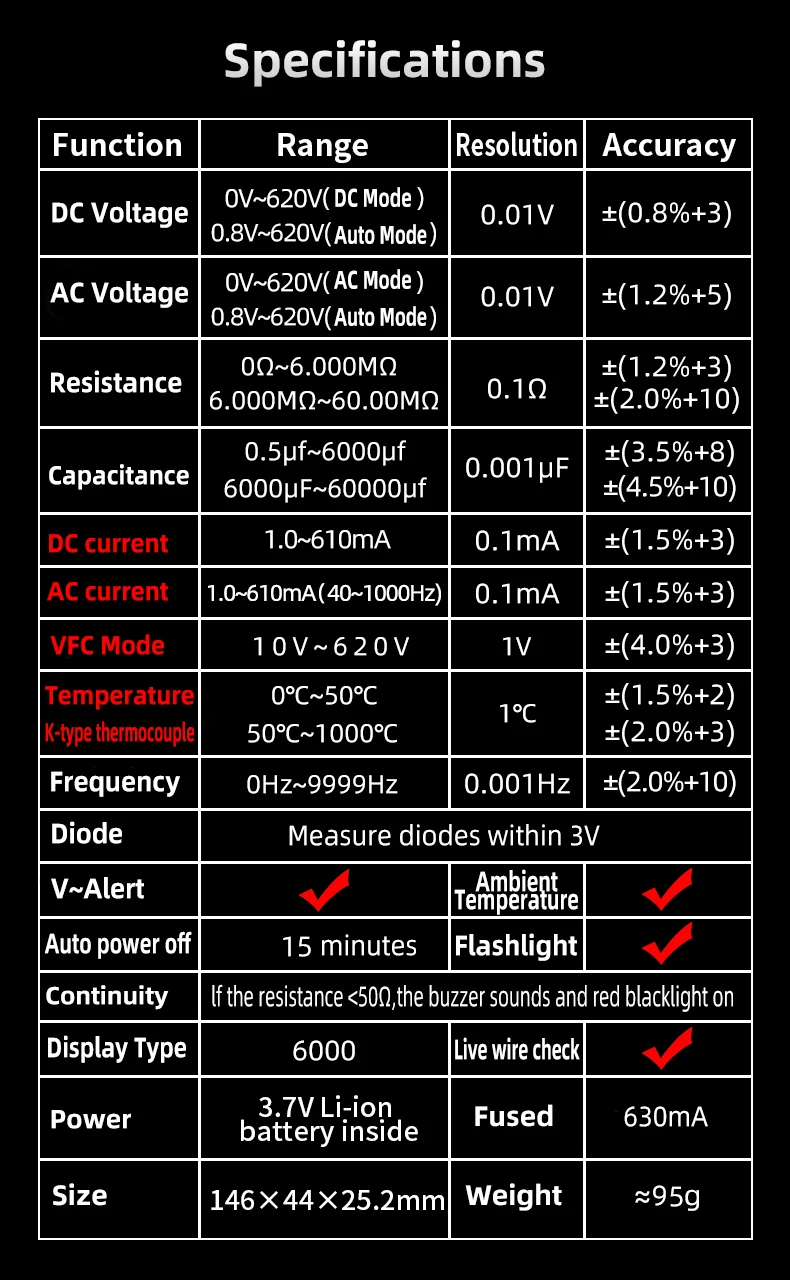

Specifications:

Display: 6000 counts

Generation: 26th generation - 2023 release

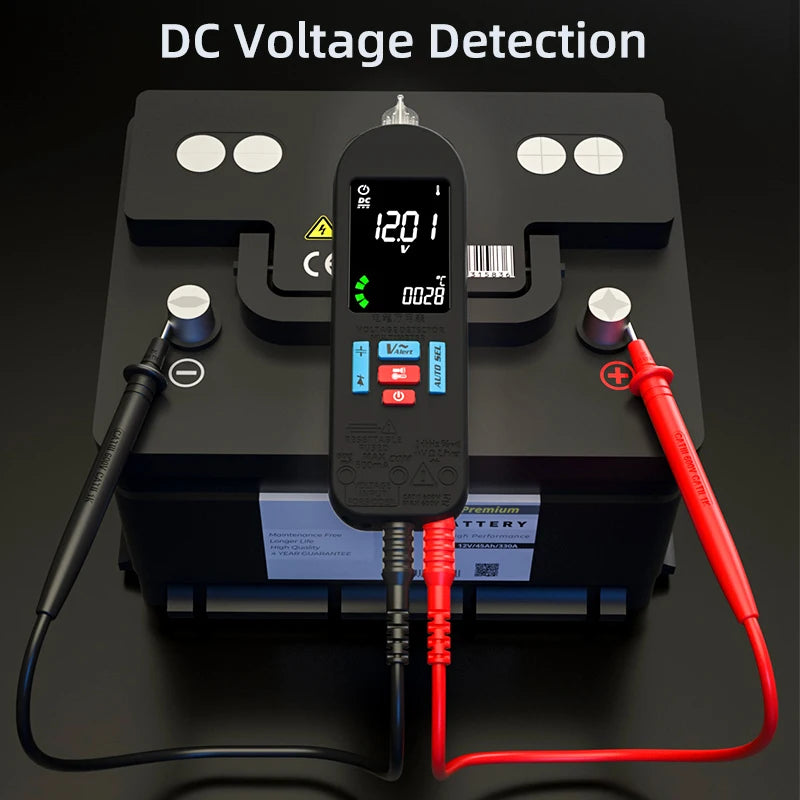

DC Voltage: 0-620V(DC Mode)/0.8-620V(Auto Mode) 0.01V ±(0.8%+3)

AC Voltage: 60mV-620V(AC Mode)/0.8V-620V 0.01V ±(1.2%+5); 10V-620V(VFC Mode)

DC Current: 1-610mA 0.1mA ±(1.5%+3)

AC Current: 1-610mA 0.1mA(40-1000Hz) ±(1.5%+3)

Resistance: 0-6MΩ 0.1Ω ±(1.2%+3); 6MΩ-60MΩ 0.1Ω ±(2.0%+10)

Capacitance: 0.5μF-6mF 0.001μF ±(3.5%+8); 6mF-60mF 0.001μF ±(4.5%+10)

Frequency: 0-9999Hz(900mVrms-20Vrms) 0.1Hz ±(2.0%+10)

V-Alert(non-contact voltage detection): Yes

Live Wire Check: Yes

Continuity: If the resistance is less than 50Ω, the beeper sounds

Diode: Measure diodes within 3V

Environment Temperature: 0-50℃ 0.1℃ ±2.0℃

Power: 3.7V (built-in, rechargeable)

Size: 146*44*25mm

Weight: 95g



Package Includes:

1 x Pocket Multimeter

1 x Test Leads

1 x Charging Cable

1 x Carrying Case

1 x Rechargeable Battery

1 x User Manual
